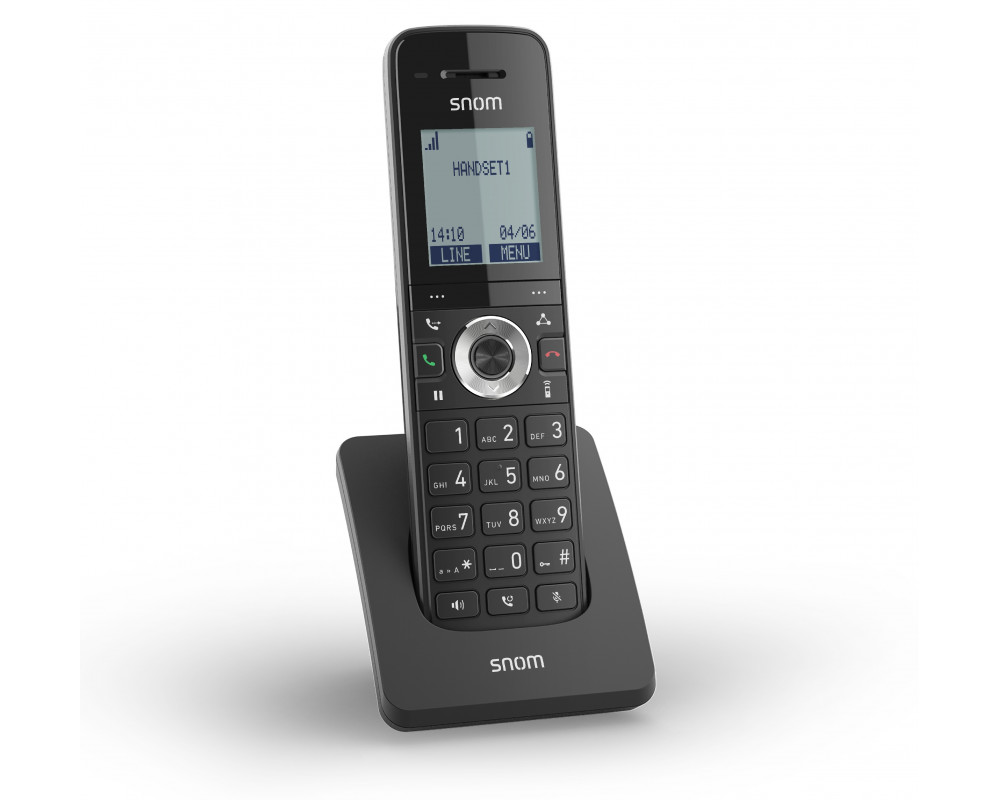

Snom M15SC

M15 SC

Hardware:

• Backlit graphic LCD display 90 x 65 pixels
• 2,5mm headphone jack wire
• Speakerphone
• Up to 7 days battery life in stand-by
• Up to 7 hours talk time
• Voicemail LED notification light
• Illuminated keypad
• Integrated belt clip

Features:

• Call history lists
• Local directory and network
• Call forwarding
• Call divert
• Hold function
• Intercom function between cordless devices connected to the M200 SC base
• Mute function
• Up to 10 numbers with speed dial
• Range up to 50 m indoors
• Compatible with GAP bases
• Over-the-air software updates

Interoperability:

• Broadsoft® BroadWorks
• Asterisk based platforms
• Metaswitch networks
• Genband™

Specifications:

• Dimensions: 174 x 49 x 31 mm
• Batteries: 2.4V / 550 mAh Ni-MH
• Input voltage: 6V
• Wall mountable charger base
• Acoustic device supports (HAC)
• Environmental conditions:
  • Operating temperature: from -5°C to 45°C
  • Non-operating temperature: from -5°C to 60°C
  • Humidity: up to 95% (non-condensing)
• Included in the package:
  • Cordless M15 SC
  • Charger base
  • Wire for charger base
  • Batteries
  • Quick start guide (QIG)
• Color: Black
• Manufacturer´s warranty: 3 years
• Product code: 00004363 Snom M15 SC Handset EU

Compliance:

• CE Marking
• IEC60950 safety

Compatibility:

• Comprehensive features only in conjunction with the M200 SC base station (code: 00004359)
• Available accessories:
  • Headphone adapter ACP J25 (code: 00004371)
  • A100M (PN: 00004341), A100D (code: 00004342)
  • Only in conjunction with the ACP J25 adapter

M200 SC

Hardware:

• Network connection: 10/100 BASE-T
• Power supply via cable and PoE (Class 2)
• Cordless handset localisation key
• Reset button
• LED status light
• Wall mountable

Features:

• Up to 6 SIP accounts (used in common or individually for cordless phones)
• Up to 4 simultaneous calls
• Compatible with GAP devices
• Over-the-air cordless software updates
• Range up to 50 m indoors
• Local directory and network
• Up to 200 numbers in the voice phone book
• Import/export phone book
• Up to 200 numbers in the call history lists
• Intercom function
• Three way conference call per base
• Caller ID
• Call plan
• Hold function
• Call forwarding
• Call divert
• Do not disturb function (DND)

Interoperability:

• Broadsoft® BroadWorks
• Asterisk based platforms
• Metaswitch networks
• Genband™

Audio:

• Codecs:
  • G.711 a-law, u-law
  • G.722
  • G.726
  • G.729
  • iLBC

Set-up:

• Configurable via web interface (Admin and User)
• Provisioning:
  • DHCP Options 66/159/160
  • Plug & Play
  • Snom redirection service
  • TR-69

Protocols:

• SIP (RFC3261)
• HTTP/HTTPS/TFTP/FTP
• DHCP,NTP,SNTP,STUN,VLAN
• RTP/SRTP
• IPv4/IPv6
• LDAP

Security:

• Transport Layer Security (TLS)
• Provisioning file with AES encryption
• OpenVPN
• 802.1x
• 802.1pq
• LLDP-MED
• Password protected web interface
• DECT encryption

Specifications:

• Dimensions: 116 x 42,4 x 151 mm
• Input voltage: 5V DC
• Environmental conditions:
  • Operating temperature: from -5°C to 45°C
  • Non-operating temperature: from -5°C to 60°C
  • Humidity: up to 95% (non-condensing)
• Included in the package:
  • Base
  • Network cable
  • Quick start guide
  • Color: Black
• Manufacturer´s warranty: 3 years
• Product code:
  • 00004359 Snom M200 SC
  • 00004365 Snom M215 SC EU
